How to make battery charger from PSU used computer
18 Nov 2017
Make your own tomb fast charger
Still about rent a toy car rc, this article about the battery and charger battery. In one rc car unit I use 5 pcs battery, 3 pcs for car and 2 pcs for radio control (remote controll).
Battery rc car that we use the battery ni-cd or ordinary people we call it battery charger. There are many types and brands that we can use from cheap to expensive.
Then for the battery charger you can buy ready-made or ready to use in toy store or electronics store, we can also make it yourself with modification psu computer for charger
Another case with a rechargeable battery charger, although later this type of battery will eventually be weak or can not be used anymore, but at least we can save operational costs.
My suggestion to buy batteries in electronics stores because the choice is more varied, different if we buy in a toy store is usually the type and quality is limited.
Actually this is good for the battery because it will last longer life and I strongly recommend for you who (sorry) cloud about electronics to choose this model charger.
However, the consideration is when we're hanging with the condition of the number of little battery while those who rent our rc car we will be overwhelmed to recharge due to the duration of charging a long time. Alternatively we have to have a charger that can charge the battery quickly.
One of them with the way we make your own (for those of you who understand a little about electronics this way you can use). This charger among tamiya lovers is famous for the name of the fast charger due to its speed in charging the battery.
Materials needed to make this charger fairly easy to find. There are two types of charger that is using travo and there is a used PSU computer. I will give a second way of making a fast charger using a used computer PSU. Immediately prepare the necessary materials are:
1. PSU used computers are still alive
2. steel plate (simpe) can be found in building stores, usually used to strengthen the connection on the wood.
3. steel shears
4. Tang
5. PCB plain search in electronics store
6. switch on off
For the cable we need the green cable is to power on it, red to 5volt output for the positive line charger battery, black for ground or negative lane charger, Cut / discard the cable that we do not need. Connect the green cable with the black wire using the on off switch.
2. Make the battery holder with material of steel plate, cut the plate with the size of 6cm for 2 pieces. Then cut the pieces into two parts. After that form the slit pieces by using pliers. For the positive pole the battery is flat, while the negative battery pole is made rather prominent.
Cut a plain PCB with size 6.5cmX4cm, make 2 pieces, remove the layer of copper.
3. Connect the red wire to the positive and black poles to the negative pole by means of solder. Compose everything so as shown below
If we have tried to connect the ac cable PSU to PLN electricity, note the fan on the PSU whether spinning (sign of PSU lit) or not. Measure the voltage at the output (battery holder) whether it is correct out voltage 5volt.
If it is correct try to use to battery battery. Warning !!! charger that we make is very fast, approximately 30 seconds the battery will feel hot this is a sign of the battery has been filled. Immediately remove his battery or to be more secure when the battery is already warm immediately remove from place.
Once again, do not forget because it will be very dangerous. (battery can explode if overload). You must be extra careful and do not be careless during the process of charging using this carger.
Still about rent a toy car rc, this article about the battery and charger battery. In one rc car unit I use 5 pcs battery, 3 pcs for car and 2 pcs for radio control (remote controll).
Battery rc car that we use the battery ni-cd or ordinary people we call it battery charger. There are many types and brands that we can use from cheap to expensive.
Then for the battery charger you can buy ready-made or ready to use in toy store or electronics store, we can also make it yourself with modification psu computer for charger
Choosing a ni-cd battery or battery charger
Battery also plays an important role in the business of rc car rental. I recommend to use a battery that can be refilled or in the charg is the type of ni-cd. Because if we use disposable batteries (eg ABC battery, evredy, alkaline) one day is not used or exhausted its contents and we have to buy again.Another case with a rechargeable battery charger, although later this type of battery will eventually be weak or can not be used anymore, but at least we can save operational costs.
My suggestion to buy batteries in electronics stores because the choice is more varied, different if we buy in a toy store is usually the type and quality is limited.
Make battery charger from PSU used computer
For the battery charger we can consider to buy a ready made or make your own. If we buy in the store usually charger duration of charging duration of about 3 hours long enough.Actually this is good for the battery because it will last longer life and I strongly recommend for you who (sorry) cloud about electronics to choose this model charger.
However, the consideration is when we're hanging with the condition of the number of little battery while those who rent our rc car we will be overwhelmed to recharge due to the duration of charging a long time. Alternatively we have to have a charger that can charge the battery quickly.
One of them with the way we make your own (for those of you who understand a little about electronics this way you can use). This charger among tamiya lovers is famous for the name of the fast charger due to its speed in charging the battery.
Materials needed to make this charger fairly easy to find. There are two types of charger that is using travo and there is a used PSU computer. I will give a second way of making a fast charger using a used computer PSU. Immediately prepare the necessary materials are:
1. PSU used computers are still alive
2. steel plate (simpe) can be found in building stores, usually used to strengthen the connection on the wood.
3. steel shears
4. Tang
5. PCB plain search in electronics store
6. switch on off
How to make:
1. Unload / open the PSU cover and notice there are many wires with multiple colors. Do not be confused because in one color it is actually the same source, the red color example is for the 5Volt output.For the cable we need the green cable is to power on it, red to 5volt output for the positive line charger battery, black for ground or negative lane charger, Cut / discard the cable that we do not need. Connect the green cable with the black wire using the on off switch.
2. Make the battery holder with material of steel plate, cut the plate with the size of 6cm for 2 pieces. Then cut the pieces into two parts. After that form the slit pieces by using pliers. For the positive pole the battery is flat, while the negative battery pole is made rather prominent.
Cut a plain PCB with size 6.5cmX4cm, make 2 pieces, remove the layer of copper.

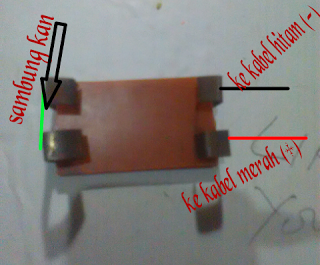

3. Connect the red wire to the positive and black poles to the negative pole by means of solder. Compose everything so as shown below
If we have tried to connect the ac cable PSU to PLN electricity, note the fan on the PSU whether spinning (sign of PSU lit) or not. Measure the voltage at the output (battery holder) whether it is correct out voltage 5volt.
If it is correct try to use to battery battery. Warning !!! charger that we make is very fast, approximately 30 seconds the battery will feel hot this is a sign of the battery has been filled. Immediately remove his battery or to be more secure when the battery is already warm immediately remove from place.
Once again, do not forget because it will be very dangerous. (battery can explode if overload). You must be extra careful and do not be careless during the process of charging using this carger.
Disclaimer
- That's how to make the tamiya fast charger for car battery charge of the former computer PSU. Any consequences arising from following this way are borne by you alone.How to make a charger from this PSU I have practiced many times and succeed. The concern is how to use the charger from PSU that need extra caution and that I have to say above. Finally, hopefully this article useful and add insight, especially for myself. Thank you for visiting.
